Batch active learning ACE (BALACE)

Automated framework for parameterizing interatomic potential using ACE for disordered material systems.

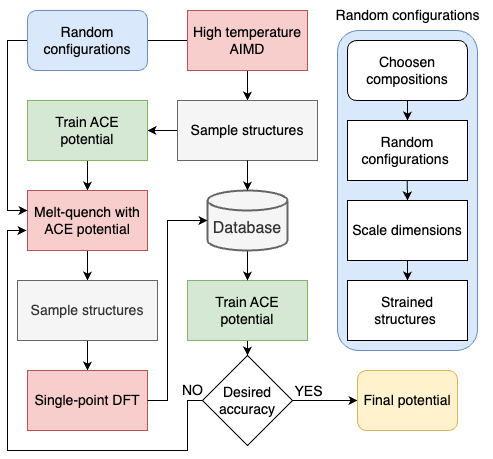

Overview:

flowdiagram

Requirements:

LAMMPS

A Lammps installation with the ML-PACE package. See (https://docs.lammps.org/Build_extras.html#ml-pace) for futher instructions.

VASP

A VASP installation is needed to run AIMD and single-point calculations. In our development we used version 6.4.3, but other version should be compatible. The VASP installation should be setup to work with Fireworks.

Fireworks

A FireWorks launchpad attached to a MongoDB is needed for the framework to manage various jobs that will run. Large scale storage in the MongoDB is not currently necessary as the framework uses local files on the system to extract structures from OUTCARS and dumpfiles for building the training data sets etc. A free MongoDB Atlas database can be used as described here (https://www.mongodb.com/products/platform/atlas-database)

Pacemaker

To use the framework pacemaker is needed to parameterize ACE potentials, which needs to be installed in the the following way:

Installation of tensorpotential

tensorpotential allows for the GPU accelerated optimization of the ACE potential using TensorFlow. However, it is recommended to use it even if you don't have a GPU available.

Install it using the following commands:

Install Tensorflow (newer version should be also compatible)

pip install tensorflow

Download the tensorpotential from this repository. Clone with

git clone https://github.com/ICAMS/TensorPotential.git
cd TensorPotential

Run installation script

pip install --upgrade .

Installation of pacemaker and pyace

The python-ace package with its pacemaker framework is also needed. It contains the pacemaker tools and other Python wrappers and utilities.

To install pyace:

Download pyace

git clone https://github.com/ICAMS/python-ace.git

Run installation script

pip install --upgrade .

API

balace

Source code in src/vitrum/batch_active/learning.py
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
class balace:
    def __init__(self, config_file="balace.yaml", filename="balace.pickle", auto_queue=False):
        """
        Initialize the balace class.

        Parameters:
            config_file (str): yaml file containing configuration for the balace class. Defaults to "balace.yaml".
            filename (str): filename to save the class to. Defaults to "balace.pickle".
            auto_queue (bool): whether to automatically queue runs. Defaults to False.

        Attributes:
            auto_queue (bool): whether to automatically queue runs
            state (str): current state of the balace run
            filename (str): filename to save the class to
            runs (dict): dictionary containing information about runs
            wd (str): working directory
            units (list of str): list of composition units to use
            iteration (int): current iteration number
            atom_types (list of str): list of atom types
            incar_settings (dict): dictionary containing incar settings
            high_temp_params (dict): dictionary containing high temperature parameters
            strain_params (dict): dictionary containing strain parameters
            launchpad (str): launchpad yaml file
            database (dict): dictionary containing database information
            qadapter_file (str): file containing qadapter
            reference_energy (str): reference energy to use
            lammps_params (dict): dictionary containing lammps parameters
            selection_params (dict): dictionary containing selection parameters
            composition_params (dict): dictionary containing composition parameters
        """
        self.auto_queue = auto_queue
        self.state = "start"
        self.filename = filename
        self.runs = {}
        self.wd = os.getcwd()
        self.iteration = 0
        self.config_file = config_file
        self.load_config()
        self.set_defaults()
        self.validate_config()
        if self.struc_gen_params["scheme"] == "even":
            self.atom_types = [
                atom.symbol for atom in Composition("".join([unit for unit in self.struc_gen_params["units"]]))
            ]
        elif self.struc_gen_params["scheme"] == "random":
            self.atom_types = (
                self.struc_gen_params["atoms"]["modifiers"]
                + self.struc_gen_params["atoms"]["formers"]
                + self.struc_gen_params["atoms"]["anions"]
            )

    def load_config(self):
        """Loads the YAML configuration file."""
        if not os.path.isfile(self.config_file):
            raise FileNotFoundError(f"Config file {self.config_file} not found.")

        with open(self.config_file, "r") as file:
            self.config = yaml.safe_load(file)

        # Apply config values as attributes
        for key, value in self.config.items():
            setattr(self, key, value)

    def set_defaults(self):
        """Sets default values for missing attributes."""
        self.incar_settings = getattr(self, "incar_settings", {})
        self.high_temp_params = getattr(self, "high_temp_params", {"temperature": 5000, "steps": 100, "sampling": 5})
        self.strain_params = getattr(self, "strain_params", {"num_strains": 3, "max_strain": 0.2})
        self.database = getattr(self, "database", None)
        self.qadapter = load_object_from_file(self.qadapter_file) if hasattr(self, "qadapter_file") else None
        self.reference_energy = getattr(self, "reference_energy", "auto")
        self.lammps_params = getattr(self, "lammps_params", {})
        self.selection_params = getattr(self, "selection_params", {})
        self.composition_params = getattr(self, "composition_params", {})
        self.struc_gen_params = getattr(
            self, "struc_gen_params", {"scheme": "even", "units": ["SiO2"], "target_atoms": 100}
        )

    def validate_config(self):
        """Validates required config values."""
        if not hasattr(self, "struc_gen_params"):
            raise RuntimeError("struc_gen_params are not specified in config file.")

        if self.struc_gen_params["scheme"] == "even" and "units" not in self.struc_gen_params:
            raise RuntimeError("units must be specified in struc_gen_params for even scheme.")

        if self.struc_gen_params["scheme"] == "random" and "atoms" not in self.struc_gen_params:
            raise RuntimeError("atoms must be specified in struc_gen_params for random scheme.")

        if not hasattr(self, "potential"):
            raise RuntimeError("potential type must be specified in config file, e.g. pace or grace.")

        if not hasattr(self, "lammps_command"):
            raise RuntimeError("lammps_command not specified in config file.")

        if not hasattr(self, "launchpad"):
            raise RuntimeError("Launchpad yaml not specified in config file.")
        self.lp = LaunchPad.from_file(self.launchpad)

        if "num_strains" not in self.strain_params or "max_strain" not in self.strain_params:
            raise RuntimeError("strain_params is missing required fields (num_strains, max_strain).")

        if self.database:
            if not os.path.isfile(self.database.get("train", "")):
                raise FileNotFoundError("train_data.pckl.gzip not found")
            if not os.path.isfile(self.database.get("test", "")):
                raise FileNotFoundError("test_data.pckl.gzip not found")

    def save(self):
        with open(self.filename, "wb") as f:
            pickle.dump(self, f)

    def queue_rapidfire(self):
        rapidfire(self.lp, FWorker(), self.qadapter)

    def check_resubmit_high_temp(self, run_uuids):
        run_id = str(uuid.uuid4())
        wf_id = get_wflow_id_from_run_uuid(self.lp, run_uuids[-1])
        wf = self.lp.get_wf_by_fw_id(wf_id)
        if "READY" in wf.fw_states.values():
            raise ValueError(f"READY jobs in wf: {wf_id} needs to be completed before proceeding")
        if "RUNNING" in wf.fw_states.values():
            raise ValueError(f"RUNNING jobs in wf: {wf_id} needs to be completed before proceeding")

        crashed_jobs = []
        fw_ids = [fw_id for fw_id, state in wf.fw_states.items() if state == "FIZZLED"]
        for id in fw_ids:
            dic = self.lp.get_fw_by_id(id)
            crashed_jobs.append({"composition": dic.spec["composition"], "strain": dic.spec["strain"]})

        if len(crashed_jobs) == 0:
            print(f"No crashed jobs in wf: {wf_id}")
            print("All jobs completed successfully, no resubmission needed.")
            return False

        else:
            print(f"Found {len(crashed_jobs)} crashed jobs in wf: {wf_id}")
            print("Resubmitting crashed jobs...")
            wf = rerun_crashed_jobs(crashed_jobs, run_id, self.incar_settings, self.high_temp_params)
            self.runs["DFT"][-1].append(str(run_id))
            self.lp.add_wf(wf)
            return True

    def generate_structures(self):
        if self.struc_gen_params["scheme"] == "even":
            structures = gen_even_structures(
                units=self.self.struc_gen_params["units"],
                target_atoms=self.struc_gen_params["target_atoms"],
                **self.composition_params,
            )
        elif self.struc_gen_params["scheme"] == "random":
            atoms = self.struc_gen_params["atoms"]
            structures = gen_random_glasses(
                atoms["modifiers"],
                atoms["formers"],
                atoms["anions"],
                weights=self.struc_gen_params.get("weights", {}),
                num_structures=self.struc_gen_params["num_structures"],
                target_atoms=self.struc_gen_params["target_atoms"],
                datatype="pymatgen",
            )
        return structures

    def run_high_temp(self):
        structures = self.generate_structures()
        wf, run_id = high_temp_run(structures, self.strain_params, self.incar_settings, self.high_temp_params)
        self.runs.setdefault("DFT", []).append([str(run_id)])
        self.state = "high_temp_AIMD"
        self.lp.add_wf(wf)
        print("High temperature run added to workflow queue")

    def run_train_pace(self):
        previous_run_ids = self.runs["DFT"][-1]
        if self.state == "high_temp_AIMD":
            stop = self.check_resubmit_high_temp(previous_run_ids)
        else:
            stop = False

        if not stop:
            atoms, metadata = get_atoms_from_wfs(self.lp, previous_run_ids, self.high_temp_params, state=self.state)
            self.database = update_ace_database(
                self.wd, atoms, self.iteration, database_paths=self.database, metadata=metadata
            )
            wf, directory = train_pace(self)
            self.lp.add_wf(wf)
            self.runs.setdefault("potential", []).append(directory)
            print(f"Training ace model, Iteration: {self.iteration}")
            self.iteration += 1
            self.state = "trained_ace"

    def run_train_grace(self):
        previous_run_ids = self.runs["DFT"][-1]
        atoms, metadata = get_atoms_from_wfs(self.lp, previous_run_ids, self.high_temp_params, state=self.state)
        self.database = update_ace_database(
            self.wd, atoms, self.iteration, database_paths=self.database, metadata=metadata
        )
        directory = train_grace(self)
        self.runs.setdefault("potential", []).append(directory)
        print(f"Train Grace based on dataset, Iteration: {self.iteration}")
        self.iteration += 1
        self.state = "trained_ace"

    def run_gen_lammps(self):
        pot_dir = self.runs["potential"][-1]

        if self.potential == "pace" and not os.path.exists(f"{pot_dir}/output_potential.yaml"):
            raise FileNotFoundError(
                f"{pot_dir}/output_potential.yaml not found. Make sure ACE potential has completed training"
            )

        run_id = str(uuid.uuid4())
        print(f"Setting up for LAMMPS runs in /gen_structures/{run_id}")
        lammps_input_writer(self.runs["potential"][-1], self.potential, self.atom_types, **self.lammps_params)
        path = f"{self.wd}/gen_structures/{run_id}"
        os.makedirs(path)
        structures = self.generate_structures()
        directories = gen_lammps_structures(structures, self.strain_params, specorder=self.atom_types, path=path)
        wfs = run_lammps(directories, self.wd, self.lammps_command, run_id)
        self.lp.add_wf(wfs)
        self.runs.setdefault("run_lammps", []).append(run_id)
        print("Generating structures with LAMMPS")
        self.state = "lammps_runs"

    def run_evaluate(self):
        folder = f"{self.wd}/gen_structures/{self.runs['run_lammps'][-1]}"
        potential_folder = self.runs["potential"][-1]
        structures, metadata = get_structures_from_lammps(
            folder, potential_folder, potential=self.potential, atom_types=self.atom_types, **self.selection_params
        )
        wfs, run_id = static_run(structures, self.incar_settings, metadata)
        self.runs.setdefault("DFT", []).append([str(run_id)])
        for wf in wfs:
            self.lp.add_wf(wf)
        self.state = "static_runs"
        print("Evaluating new structures with VASP")

    def run_pace(self):
        """
        The main loop for the active learning workflow. It runs through the following states:
        - Runs a high temperature AIMD simulation using VASP.
        - Trains the ACE model using the current database of structures.
        - Runs LAMMPS simulations with the current ACE potential to generate new structures.
        - Evaluates the new structures with VASP static calculations.

        Parameters:
            None

        Returns:
            None
        """
        print(f"Current state: {self.state}, Iteration: {self.iteration}")

        # Mapping states to methods
        state_methods = {
            "start": self.run_high_temp,
            "high_temp_AIMD": self.run_train_pace,
            "static_runs": self.run_train_pace,
            "trained_ace": self.run_gen_lammps,
            "lammps_runs": self.run_evaluate,
        }

        # Get the corresponding method and execute it
        state_method = state_methods.get(self.state)
        if state_method:
            state_method()
        else:
            raise ValueError(f"Unknown state: {self.state}")

        self.save()

        if self.auto_queue is True:
            self.queue_rapidfire() if hasattr(self, "qadapter") else print("No qadapter found, skipping auto queue")

    def run_grace(self):
        print(f"Current state: {self.state}, Iteration: {self.iteration}")
        if self.state == "start":
            if not hasattr(self, "initial_potential"):
                raise ValueError("Initial potential not specified in config file.")
            directory = self.initial_potential
            self.runs.setdefault("potential", []).append(directory)

        # Mapping states to methods
        state_methods = {
            "start": self.run_gen_lammps,
            "static_runs": self.run_train_grace,
            "trained_ace": self.run_gen_lammps,
            "lammps_runs": self.run_evaluate,
        }

        # Get the corresponding method and execute it
        state_method = state_methods.get(self.state)
        if state_method:
            state_method()
        else:
            raise ValueError(f"Unknown state: {self.state}")

        self.save()

    def run(self):
        if self.potential == "pace":
            self.run_pace()
        elif self.potential == "grace":
            self.run_grace()
        else:
            raise ValueError(f"Unsupported potential type: {self.potential}")

__init__(config_file='balace.yaml', filename='balace.pickle', auto_queue=False)

Initialize the balace class.

Parameters:

Name Type Description Default
config_file str

yaml file containing configuration for the balace class. Defaults to "balace.yaml".

 'balace.yaml'
filename str

filename to save the class to. Defaults to "balace.pickle".

 'balace.pickle'
auto_queue bool

whether to automatically queue runs. Defaults to False.

 False

Attributes:

Name Type Description
auto_queue bool

whether to automatically queue runs
state str

current state of the balace run
filename str

filename to save the class to
runs dict

dictionary containing information about runs
wd str

working directory
units list of str

list of composition units to use
iteration int

current iteration number
atom_types list of str

list of atom types
incar_settings dict

dictionary containing incar settings
high_temp_params dict

dictionary containing high temperature parameters
strain_params dict

dictionary containing strain parameters
launchpad str

launchpad yaml file
database dict

dictionary containing database information
qadapter_file str

file containing qadapter
reference_energy str

reference energy to use
lammps_params dict

dictionary containing lammps parameters
selection_params dict

dictionary containing selection parameters
composition_params dict

dictionary containing composition parameters
Source code in src/vitrum/batch_active/learning.py
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
def __init__(self, config_file="balace.yaml", filename="balace.pickle", auto_queue=False):
    """
    Initialize the balace class.

    Parameters:
        config_file (str): yaml file containing configuration for the balace class. Defaults to "balace.yaml".
        filename (str): filename to save the class to. Defaults to "balace.pickle".
        auto_queue (bool): whether to automatically queue runs. Defaults to False.

    Attributes:
        auto_queue (bool): whether to automatically queue runs
        state (str): current state of the balace run
        filename (str): filename to save the class to
        runs (dict): dictionary containing information about runs
        wd (str): working directory
        units (list of str): list of composition units to use
        iteration (int): current iteration number
        atom_types (list of str): list of atom types
        incar_settings (dict): dictionary containing incar settings
        high_temp_params (dict): dictionary containing high temperature parameters
        strain_params (dict): dictionary containing strain parameters
        launchpad (str): launchpad yaml file
        database (dict): dictionary containing database information
        qadapter_file (str): file containing qadapter
        reference_energy (str): reference energy to use
        lammps_params (dict): dictionary containing lammps parameters
        selection_params (dict): dictionary containing selection parameters
        composition_params (dict): dictionary containing composition parameters
    """
    self.auto_queue = auto_queue
    self.state = "start"
    self.filename = filename
    self.runs = {}
    self.wd = os.getcwd()
    self.iteration = 0
    self.config_file = config_file
    self.load_config()
    self.set_defaults()
    self.validate_config()
    if self.struc_gen_params["scheme"] == "even":
        self.atom_types = [
            atom.symbol for atom in Composition("".join([unit for unit in self.struc_gen_params["units"]]))
        ]
    elif self.struc_gen_params["scheme"] == "random":
        self.atom_types = (
            self.struc_gen_params["atoms"]["modifiers"]
            + self.struc_gen_params["atoms"]["formers"]
            + self.struc_gen_params["atoms"]["anions"]
        )

load_config()

Loads the YAML configuration file.

Source code in src/vitrum/batch_active/learning.py
86
87
88
89
90
91
92
93
94
95
96
def load_config(self):
    """Loads the YAML configuration file."""
    if not os.path.isfile(self.config_file):
        raise FileNotFoundError(f"Config file {self.config_file} not found.")

    with open(self.config_file, "r") as file:
        self.config = yaml.safe_load(file)

    # Apply config values as attributes
    for key, value in self.config.items():
        setattr(self, key, value)

run_pace()

The main loop for the active learning workflow. It runs through the following states: - Runs a high temperature AIMD simulation using VASP. - Trains the ACE model using the current database of structures. - Runs LAMMPS simulations with the current ACE potential to generate new structures. - Evaluates the new structures with VASP static calculations.

Returns:

Type Description

None
Source code in src/vitrum/batch_active/learning.py
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
def run_pace(self):
    """
    The main loop for the active learning workflow. It runs through the following states:
    - Runs a high temperature AIMD simulation using VASP.
    - Trains the ACE model using the current database of structures.
    - Runs LAMMPS simulations with the current ACE potential to generate new structures.
    - Evaluates the new structures with VASP static calculations.

    Parameters:
        None

    Returns:
        None
    """
    print(f"Current state: {self.state}, Iteration: {self.iteration}")

    # Mapping states to methods
    state_methods = {
        "start": self.run_high_temp,
        "high_temp_AIMD": self.run_train_pace,
        "static_runs": self.run_train_pace,
        "trained_ace": self.run_gen_lammps,
        "lammps_runs": self.run_evaluate,
    }

    # Get the corresponding method and execute it
    state_method = state_methods.get(self.state)
    if state_method:
        state_method()
    else:
        raise ValueError(f"Unknown state: {self.state}")

    self.save()

    if self.auto_queue is True:
        self.queue_rapidfire() if hasattr(self, "qadapter") else print("No qadapter found, skipping auto queue")

set_defaults()

Sets default values for missing attributes.

Source code in src/vitrum/batch_active/learning.py
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
def set_defaults(self):
    """Sets default values for missing attributes."""
    self.incar_settings = getattr(self, "incar_settings", {})
    self.high_temp_params = getattr(self, "high_temp_params", {"temperature": 5000, "steps": 100, "sampling": 5})
    self.strain_params = getattr(self, "strain_params", {"num_strains": 3, "max_strain": 0.2})
    self.database = getattr(self, "database", None)
    self.qadapter = load_object_from_file(self.qadapter_file) if hasattr(self, "qadapter_file") else None
    self.reference_energy = getattr(self, "reference_energy", "auto")
    self.lammps_params = getattr(self, "lammps_params", {})
    self.selection_params = getattr(self, "selection_params", {})
    self.composition_params = getattr(self, "composition_params", {})
    self.struc_gen_params = getattr(
        self, "struc_gen_params", {"scheme": "even", "units": ["SiO2"], "target_atoms": 100}
    )

validate_config()

Validates required config values.

Source code in src/vitrum/batch_active/learning.py
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
def validate_config(self):
    """Validates required config values."""
    if not hasattr(self, "struc_gen_params"):
        raise RuntimeError("struc_gen_params are not specified in config file.")

    if self.struc_gen_params["scheme"] == "even" and "units" not in self.struc_gen_params:
        raise RuntimeError("units must be specified in struc_gen_params for even scheme.")

    if self.struc_gen_params["scheme"] == "random" and "atoms" not in self.struc_gen_params:
        raise RuntimeError("atoms must be specified in struc_gen_params for random scheme.")

    if not hasattr(self, "potential"):
        raise RuntimeError("potential type must be specified in config file, e.g. pace or grace.")

    if not hasattr(self, "lammps_command"):
        raise RuntimeError("lammps_command not specified in config file.")

    if not hasattr(self, "launchpad"):
        raise RuntimeError("Launchpad yaml not specified in config file.")
    self.lp = LaunchPad.from_file(self.launchpad)

    if "num_strains" not in self.strain_params or "max_strain" not in self.strain_params:
        raise RuntimeError("strain_params is missing required fields (num_strains, max_strain).")

    if self.database:
        if not os.path.isfile(self.database.get("train", "")):
            raise FileNotFoundError("train_data.pckl.gzip not found")
        if not os.path.isfile(self.database.get("test", "")):
            raise FileNotFoundError("test_data.pckl.gzip not found")
